Complete parts catalog with Retail Price and Dealer Price. Add to Cart uses the Dealer Price only.

Electric ยท Warrior E15 Platform
RFN Warrior SX-E15

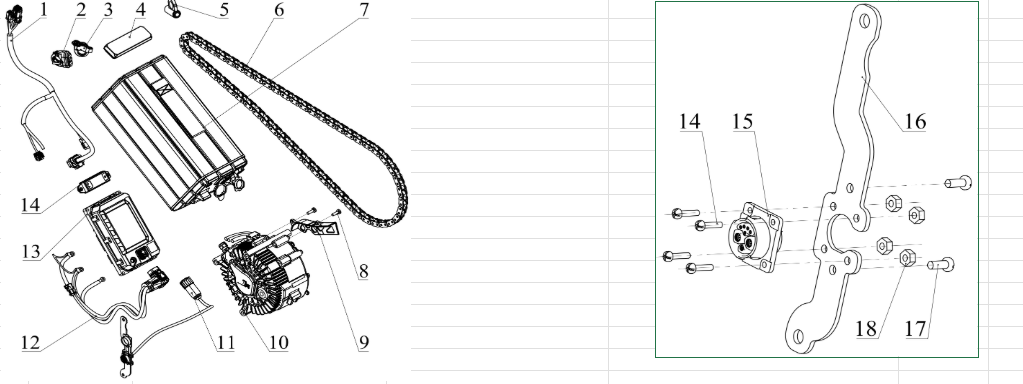

01 / PartsELECTRIC COMPONENTS
ELECTRIC COMPONENTS Diagram
In Stock In Stock
#1
Wire harness assembly
315134010001
Retail
$79.64
Dealer
$55.75
In Stock
#2
Switch Button
315090001004
Retail
$15.44
Dealer
$10.81
In Stock
#3
Emergency power-off switch
315135001002
Retail
$13.84
Dealer
$9.69
In Stock
#4
display
317001714001
Retail
$60.84
Dealer
$42.59
In Stock
#5
Start switch
316004022001
Retail
$20.64
Dealer
$14.45
In Stock
#6
Chain
311011295001
Retail
$66.88
Dealer
$46.82
In Stock
#7
Lithium battery 40Ah
315006038001
Retail
$2912.40
Dealer
$2038.68
In Stock
#8
bolt
401008006001
Retail
$0.40
Dealer
$0.28
In Stock
#9
Chain cover
304062041201
Retail
$0.52
Dealer
$0.36
In Stock
#10
Motor
315031054001
Retail
$1536.52
Dealer
$1075.56
In Stock
#11
Charging extension cable
315098002001
Retail
$
Dealer
$
In Stock
#12
DC output line
315137002001
Retail
$82.16
Dealer
$57.51
In Stock
#13
Brushless controller
315021404001
Retail
$622.32
Dealer
$435.62
In Stock
#14
Bluetooth communication box
315220001001
Retail
$35.44
Dealer
$24.81
In Stock
#15
screw
403013051001
Retail
$0.08
Dealer
$0.06
In Stock
#16
Charging dock
/
Retail
$
Dealer
$
In Stock
#17
Charger bracket
609003026002
Retail
$0.92
Dealer
$0.64
In Stock
#18
screw
403015005002
Retail
$0.08
Dealer
$0.06
In Stock
#19
nut
404002007001
Retail
$0.04
Dealer
$0.03

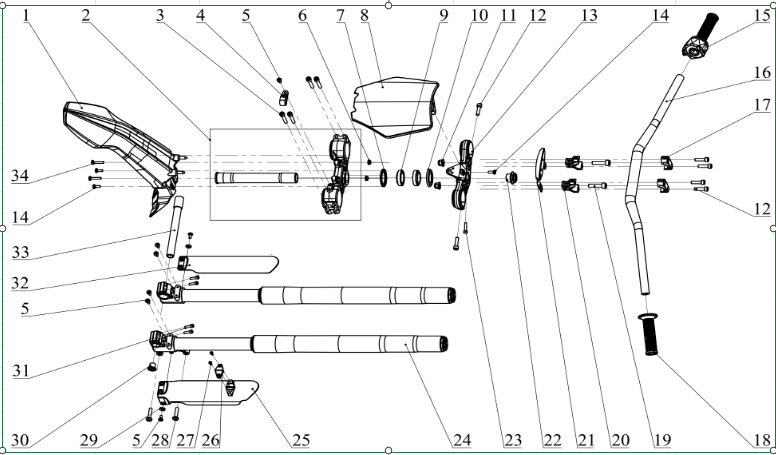

02 / PartsFORK / HANDLEBAR / BRAKES
FORK / HANDLEBAR / BRAKES Diagram
In Stock
#1
Front fender
304015030001
Retail
$7.72
Dealer
$5.40
In Stock
#2
steering assembly
310144004002
Retail
$72.92
Dealer
$51.04
In Stock
#3
bolt
401006023001
Retail
$0.84
Dealer
$0.59
In Stock
#4
Front brake oil pipe snap
318001033001
Retail
$0.32
Dealer
$0.22
In Stock
#5
bolt
401008008001
Retail
$0.92
Dealer
$0.64
In Stock
#6
nut
404030005001
Retail
$0.40
Dealer
$0.28
In Stock
#7
Dust-proof sealing ring lower cover
319081002001
Retail
$1.28
Dealer
$0.90
In Stock
#8
Number plate
304013032001
Retail
$2.88
Dealer
$2.02
In Stock
#9
bearing
409003011001
Retail
$25.28
Dealer
$17.70
In Stock
#10
Dust-proof sealing ring cover
319081003001
Retail
$1.40
Dealer
$0.98
In Stock
#11
nut
404005010001
Retail
$0.92
Dealer
$0.64
In Stock
#12
bolt
401006022001
Retail
$0.72
Dealer
$0.50
In Stock
#13
Upper connecting plate
310021046002
Retail
$43.60
Dealer
$30.52
In Stock
#14
bolt
401008005001
Retail
$0.60
Dealer
$0.42
In Stock
#15
throttle
315037067002
Retail
$59.04
Dealer
$41.33
In Stock
#16
handlebar
310001158002
Retail
$39.08
Dealer
$27.36
In Stock
#17
Upper clamp
310133013002
Retail
$10.16
Dealer
$7.11
In Stock
#18
Left grip
/
Retail
$9.08
Dealer
$6.36
In Stock
#19
bolt
401006024001
Retail
$1.44
Dealer
$1.01
In Stock
#20
Lower clamp
310134014002
Retail
$12.16
Dealer
$8.51
In Stock
#21
display bracket
303026019202
Retail
$2.28
Dealer
$1.60
In Stock
#22
steering column end cover
319078003001
Retail
$6.32
Dealer
$4.42
In Stock
#23
bolt
401006016001
Retail
$0.60
Dealer
$0.42
In Stock
#24
Front shock absorber assembly
305053008003
Retail
$522.44
Dealer
$365.71
In Stock
#25
The left front shock cover
304119006001
Retail
$1.80
Dealer
$1.26
In Stock
#26
Oil pipe cap
/
Retail
$
Dealer
$
In Stock
#27
screw
403015005002
Retail
$0.08
Dealer
$0.06
In Stock
#28
screw
403035001001
Retail
$1.60
Dealer
$1.12
In Stock
#29
washer
319077003001
Retail
$0.08
Dealer
$0.06
In Stock
#30
Front axle plug
319079004001
Retail
$4.12
Dealer
$2.88
In Stock
#31
bolt
401006016001
Retail
$0.60
Dealer
$0.42
In Stock
#32
The right front shock absorber plastic
304120006001
Retail
$1.68
Dealer
$1.18
In Stock
#33
Front axle
307027010001
Retail
$16.36
Dealer
$11.45
In Stock
#34
bolt
401008004001
Retail
$0.60
Dealer
$0.42

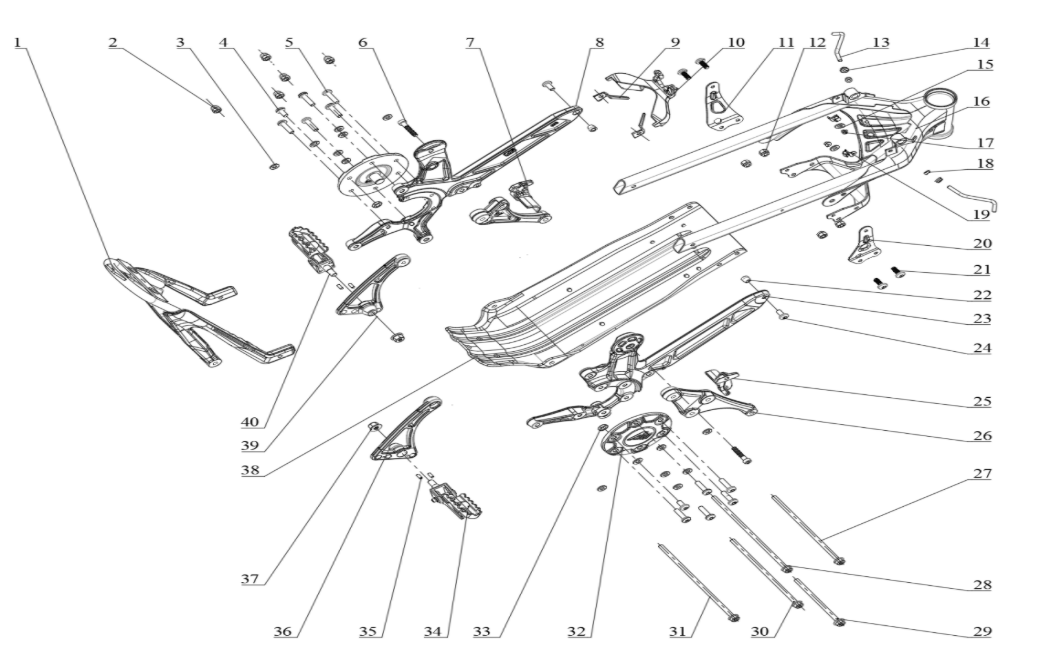

03 / PartsFRAME ASSEMBLY
FRAME ASSEMBLY Diagram
In Stock
#1
Frame
303001490001
Retail
$
Dealer
$
In Stock
#2
Wire harness ring
318111003001
Retail
$0.24
Dealer
$0.17
In Stock
#3
screw
403036001001
Retail
$0.36
Dealer
$0.25
In Stock
#4
screw
403033003001
Retail
$0.84
Dealer
$0.59
In Stock
#5
Elastic retaining ring for shafts
405002010001
Retail
$0.28
Dealer
$0.20
In Stock
#6
Battery pad liner
319001243001
Retail
$1.28
Dealer
$0.90
In Stock
#7
Buffer rubber sleeve
319076002001
Retail
$3.32
Dealer
$2.32
In Stock
#8
nut
404030005001
Retail
$0.40
Dealer
$0.28
In Stock
#9
bolt
401008009002
Retail
$1.16
Dealer
$0.81
In Stock
#10
bolt
401010007001
Retail
$3.36
Dealer
$2.35
In Stock
#11
bolt
401010008001
Retail
$
Dealer
$
In Stock
#12
Foot pedal mounting base
602003087002
Retail
$9.08
Dealer
$6.36
In Stock
#13
Subframe assembly
606023003201
Retail
$131.40
Dealer
$91.98
In Stock
#14
Footrest assy-Right
606009010004
Retail
$18.56
Dealer
$12.99
In Stock
#15
bolt
401008011001
Retail
$0.60
Dealer
$0.42
In Stock
#16
Bushing
319087001001
Retail
$1.40
Dealer
$0.98
In Stock
#17
Frame bottom protective rubber
318111004002
Retail
$1.40
Dealer
$0.98
In Stock
#18
bolt
401010013001
Retail
$5.88
Dealer
$4.12
In Stock
#19
nut
404005010001
Retail
$0.92
Dealer
$0.64
In Stock
#20
Motor guard_
304141001002
Retail
$13.52
Dealer
$9.46
In Stock
#21
Flat washer
405006004001
Retail
$0.04
Dealer
$0.03
In Stock
#22
screws
ๆ–ฐๅŠ ็ 
Retail
$
Dealer
$
In Stock
#23
Side stand bushing
319002010001
Retail
$3.16
Dealer
$2.21
In Stock
#24
Kick stand fixed seat
303238003001
Retail
$22.40
Dealer
$15.68
In Stock
#25
Kick stand pull plate
ๆ–ฐๅŠ ็ 
Retail
$0.44
Dealer
$0.31
In Stock
#26
Kick stand bolt
401004003001
Retail
$1.40
Dealer
$0.98
In Stock
#27
Kick stand
303012273002
Retail
$39.92
Dealer
$27.94
In Stock
#28
small spring
319088002001
Retail
$0.36
Dealer
$0.25
In Stock
#29
bolt
401006018001
Retail
$1.00
Dealer
$0.70
In Stock
#30
Tension spring retaining pin
606005016003
Retail
$3.16
Dealer
$2.21
In Stock
#31
Footrest assy-Left
606009011004
Retail
$18.56
Dealer
$12.99
In Stock
#32
nut
404030001001
Retail
$0.28
Dealer
$0.20
In Stock
#33
bolt
401008012001
Retail
$0.48
Dealer
$0.34
In Stock
#34
screw
403005119001
Retail
$0.12
Dealer
$0.08
In Stock
#35
washer
ๆ–ฐๅŠ ็ 
Retail
$0.08
Dealer
$0.06
In Stock
#36
nut
404001001004
Retail
$
Dealer
$
In Stock
#37
bolt
401008005001
Retail
$0.60
Dealer
$0.42
In Stock
#38
Seat cushion fixing shaft
409012001001
Retail
$
Dealer
$

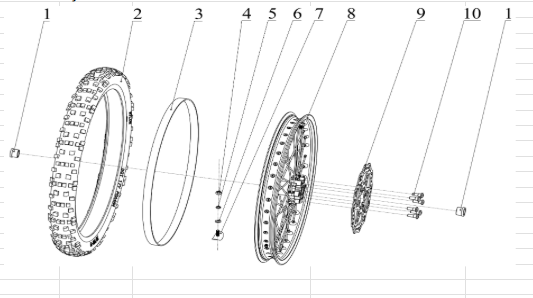

04 / PartsFRONT WHEEL ASSEMBLY
FRONT WHEEL ASSEMBLY Diagram
In Stock
#1
Front wheel spacer
307044002001
Retail
$7.72
Dealer
$5.40
In Stock
#2
Tires (inner and outer tires)
307007290001
Retail
$105.60
Dealer
$73.92
In Stock
#3
Backing tape
/
Retail
$
Dealer
$
In Stock
#4
nut
404001004005
Retail
$0.12
Dealer
$0.08
In Stock
#5
spring washer
405003011007
Retail
$0.08
Dealer
$0.06
In Stock
#6
Flat washer
405006047005
Retail
$0.04
Dealer
$0.03
In Stock
#7
Front wheel anti-slip block
307010001001
Retail
$2.52
Dealer
$1.76
In Stock
#8
Front rim assembly
307038007001
Retail
$415.80
Dealer
$291.06
In Stock
#9
Front disc brake
308002029201
Retail
$26.36
Dealer
$18.45
In Stock
#10
screws
403030003001
Retail
$0.84
Dealer
$0.59

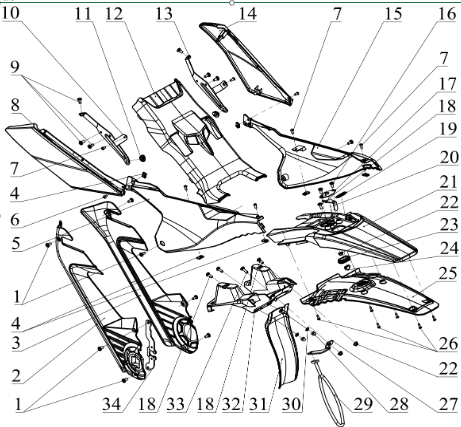

05 / PartsPLASTIC PARTS ASSEMBLY
PLASTIC PARTS ASSEMBLY Diagram
In Stock
#1
bolt
401008008001
Retail
$0.92
Dealer
$0.64
In Stock
#2
The controller decorative cover is on the left
304137001001
Retail
$5.28
Dealer
$3.70
In Stock
#3
The controller decorative cover is on the right
304138001001
Retail
$5.28
Dealer
$3.70
In Stock
#4
Clamping nut
404009001002
Retail
$0.16
Dealer
$0.11
In Stock
#5
left plastic cover
304114004004
Retail
$5.20
Dealer
$3.64
In Stock
#6
screw
403004044202
Retail
$0.08
Dealer
$0.06
In Stock
#7
screw
403036001001
Retail
$0.36
Dealer
$0.25
In Stock
#8
Left front lower side plastic
304154001001
Retail
$3.36
Dealer
$2.35
In Stock
#9
bolt
401008013001
Retail
$0.32
Dealer
$0.22
In Stock
#10
Front side fixing bracket -Left
304135002002
Retail
$4.32
Dealer
$3.02
In Stock
#11
Rear rubber gasket for seat cushion
319016018001
Retail
$0.48
Dealer
$0.34
In Stock
#12
Battery decorative cover
304116001001
Retail
$6.32
Dealer
$4.42
In Stock
#13
Front side fixing bracket-Right
304136002002
Retail
$4.32
Dealer
$3.02
In Stock
#14
Right front lower side plastic
304153001001
Retail
$3.48
Dealer
$2.44
In Stock
#15
Right plastic cover
304115004004
Retail
$5.20
Dealer
$3.64
In Stock
#16
screw
403036003001
Retail
$0.40
Dealer
$0.28
In Stock
#17
Seat cushion fixed seat
303045003002
Retail
$0.48
Dealer
$0.34
In Stock
#18
screw
403036002001
Retail
$0.56
Dealer
$0.39
In Stock
#19
Seat cushion fixing tension spring
319088004001
Retail
$0.28
Dealer
$0.20
In Stock
#20
Seat cushion fixing plate
601117001001
Retail
$0.48
Dealer
$0.34
In Stock
#21
rear fender
304009026001
Retail
$10.64
Dealer
$7.45
In Stock
#22
nut
404030005001
Retail
$0.40
Dealer
$0.28
In Stock
#23
Seat cushion fixing plate protective cover
301080001001
Retail
$0.72
Dealer
$0.50
In Stock
#24
Seat cushion fixing plate hand guard
301081002001
Retail
$0.48
Dealer
$0.34
In Stock
#25
The lower cover plate of the rear tailboard
304159001001
Retail
$5.12
Dealer
$3.58
In Stock
#26
screw
403015008001
Retail
$0.12
Dealer
$0.08
In Stock
#27
Single-support pull rope support
303134002250
Retail
$0.64
Dealer
$0.45
In Stock
#28
Cap type nut
404008008001
Retail
$0.36
Dealer
$0.25
In Stock
#29
Side bracket pull strap
319097001001
Retail
$2.12
Dealer
$1.48
In Stock
#30
Flat washer
405006063001
Retail
$0.08
Dealer
$0.06
In Stock
#31
Rear mudguard
304018021001
Retail
$2.12
Dealer
$1.48
In Stock
#32
Storage box (behind the climbing vehicle
304117003001
Retail
$5.04
Dealer
$3.53
In Stock
#33
screw
403036005201
Retail
$0.24
Dealer
$0.17
In Stock
#34
Charger bracket
609003026002
Retail
$0.92
Dealer
$0.64
06 / PartsSUSPENSION ASSEMBLY

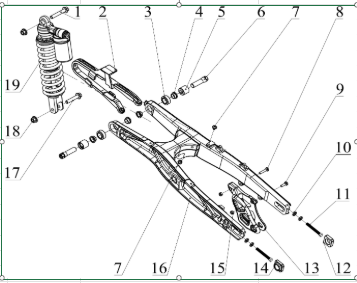

SUSPENSION ASSEMBLY Diagram
In Stock
#1
bolt
401010010001
Retail
$
Dealer
$
In Stock
#2
Rear fork protective cover
304034024001
Retail
$5.36
Dealer
$3.75
In Stock
#3
bearing
/
Retail
$
Dealer
$
In Stock
#4
bushing
/
Retail
$1.40
Dealer
$0.98
In Stock
#5
Expansion bushing
319086002001
Retail
$5.04
Dealer
$3.53
In Stock
#6
Expansion screw
403009009001
Retail
$2.32
Dealer
$1.62
In Stock
#7
screws
403034001001
Retail
$1.64
Dealer
$1.15
In Stock
#8
bolt
401008007001
Retail
$0.60
Dealer
$0.42
In Stock
#9
bolt
401008006001
Retail
$0.40
Dealer
$0.28
In Stock
#10
nut
404002008001
Retail
$0.40
Dealer
$0.28
In Stock
#11
Hexagonal head bolt with full thread
401003017001
Retail
$0.52
Dealer
$0.36
In Stock
#12
Chain regulator right
311101003001
Retail
$8.16
Dealer
$5.71
In Stock
#13
Chain guide
301062002001
Retail
$9.08
Dealer
$6.36
In Stock
#14
Chain regulator left
311100003001
Retail
$7.04
Dealer
$4.93
In Stock
#15
nut
404027001001
Retail
$0.32
Dealer
$0.22
In Stock
#16
Rear fork
306005249001
Retail
$308.08
Dealer
$215.66
In Stock
#17
bolt
401010026201
Retail
$1.80
Dealer
$1.26
In Stock
#18
nut
404005010001
Retail
$0.92
Dealer
$0.64
In Stock
#19
Rear shock absorber assembly
305054005001
Retail
$211.28
Dealer
$147.90
07/ PartsBrake

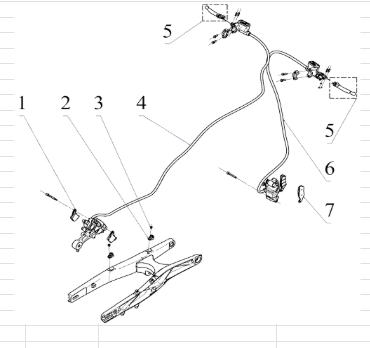

BBrake Diagram
In Stock
#1
Brake shoes
/
Retail
$59.04
Dealer
$41.33
In Stock
#2
Rear brake oil pipe latch
318001002002
Retail
$0.24
Dealer
$0.17
In Stock
#3
screw
403033002001
Retail
$0.28
Dealer
$0.20
In Stock
#4
Rear brake assembly
308059011001
Retail
$165.20
Dealer
$115.64
In Stock
#5
Brake lever
/
Retail
$31.45
Dealer
$21.99
In Stock
#6
Front brake assembly
308058011001
Retail
$155.96
Dealer
$109.17
In Stock
#7
Brake pad
/
Retail
$59.04
Dealer
$41.33
08 / PartsREAR WHEEL ASSEMBLY

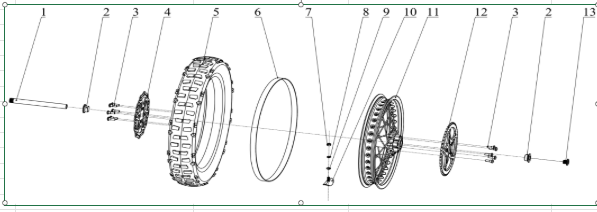

REAR WHEEL ASSEMBLY Diagram
In Stock
#1
Front wheel spacer
307044002001
Retail
$7.72
Dealer
$5.40
In Stock
#2
Tires (inner and outer tires)
307007290001
Retail
$105.60
Dealer
$73.92
In Stock
#3
Backing tape
/
Retail
$
Dealer
$
In Stock
#4
nut
404001004005
Retail
$0.12
Dealer
$0.08
In Stock
#5
spring washer
405003011007
Retail
$0.08
Dealer
$0.06
In Stock
#6
Flat washer
405006047005
Retail
$0.04
Dealer
$0.03
In Stock
#7
Front wheel anti-slip block
307010001001
Retail
$2.52
Dealer
$1.76
In Stock
#8
Front rim assembly
307038007001
Retail
$415.80
Dealer
$291.06
In Stock
#9
Front disc brake
308002029201
Retail
$26.36
Dealer
$18.45
In Stock
#10
screws
403030003001
Retail
$0.84
Dealer
$0.59
08 / PartsSeat Assembly

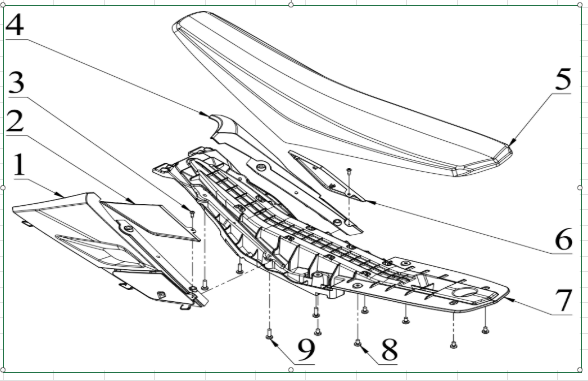

SEAT ASSEMBLY
In Stock
#1
Left front upper side plate
304156001002
Retail
$10.28
Dealer
$7.20
In Stock
#2
Left front upper side plate
304158001001
Retail
$0.68
Dealer
$0.48
In Stock
#3
screw
403015008001
Retail
$0.12
Dealer
$0.08
In Stock
#4
The upper right front side plate
304155001002
Retail
$10.32
Dealer
$7.22
In Stock
#5
Seat cushion assembly
313020016001
Retail
$44.52
Dealer
$31.16
In Stock
#6
right front upper side plate
304157001001
Retail
$0.68
Dealer
$0.48
In Stock
#7
seat cushion base plate
304152001001
Retail
$16.36
Dealer
$11.45
In Stock
#8
screw
403004036001
Retail
$0.16
Dealer
$0.11
In Stock
#9
screw
403004037001
Retail
$0.20
Dealer
$0.14
09 / Partslinkage Assembly

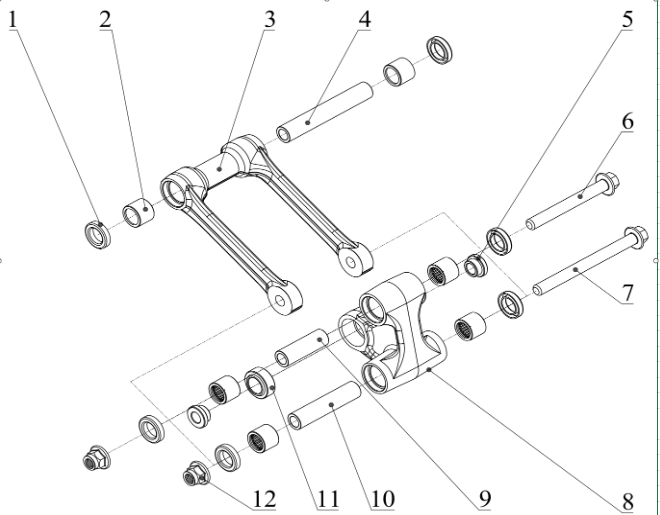

linkage Assembly Diagram
In Stock
#1
Skeleton type oil seal
/
Retail
$
Dealer
$
In Stock
#2
bearings
/
Retail
$
Dealer
$
In Stock
#3
U-shaped linkage
/
Retail
$33.16
Dealer
$21
In Stock
#4
linkage bushing
/
Retail
$
Dealer
$
In Stock
#5
Spherical plain bearing bushings
/
Retail
$
Dealer
$
In Stock
#6
bolt
401010012001
Retail
$3.48
Dealer
$2.44
In Stock
#7
bolt
401010011001
Retail
$
Dealer
$
In Stock
#8
Triangular linkage arm
/
Retail
$
Dealer
$
In Stock
#9
linkage arm bushing
/
Retail
$
Dealer
$
In Stock
#10
The middle bushing of the linkage arm
/
Retail
$
Dealer
$
In Stock
#11
bearing
/
Retail
$
Dealer
$
In Stock
#12
lock nut
404005010001
Retail
$0.92
Dealer
$0.64
10/ PartsBattery lock

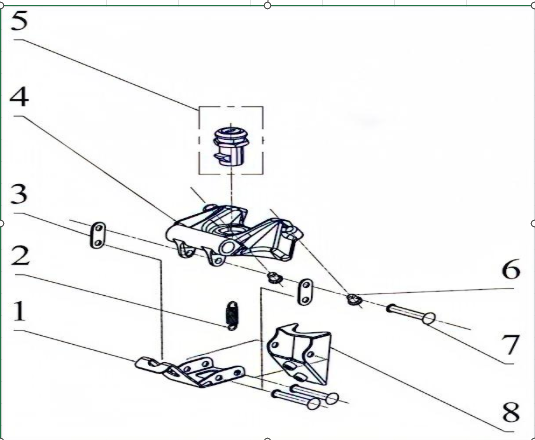

Battery lock Diagram
In Stock
#1
Battery lock hook
609099005004
Retail
$1.04
Dealer
$0.73
In Stock
#2
Battery lock tension spring
319088001001
Retail
$0.16
Dealer
$0.11
In Stock
#3
Battery lock connecting rod
609099007001
Retail
$0.12
Dealer
$0.08
In Stock
#4
Battery lock cover
318111005001
Retail
$9.20
Dealer
$6.44
In Stock
#5
Lock set
312002038001
Retail
$16.92
Dealer
$11.84
In Stock
#6
Battery lock cover nail
406004001001
Retail
$0.12
Dealer
$0.08
In Stock
#7
Pressed rivets
406003001001
Retail
$0.60
Dealer
$0.42
In Stock
#8
Battery lock bracket
609099006004
Retail
$3.96
Dealer
$2.77
