01 / PartsREAR WHEEL ASSY

13 OEM parts · Retail + Dealer pricing

REAR WHEEL ASSY Diagram
In Stock
#1
Rear Axle
319003014001
Retail
$24.30
Dealer
$18.00
In Stock
#2
Bolt+Brake Disc
309007010001
Retail
$38.88
Dealer
$28.80
In Stock
#3
Rear RiM Wheel
307039003001
Retail
$257.58
Dealer
$190.80
In Stock
#4
Washer+Rear wheel anti-slip bloc
405006047005
Retail
$18.24
Dealer
$22.40
In Stock
#5
Tire & Inner Tube (Include Tape)
307007281001
Retail
$87.48
Dealer
$64.80
In Stock
#6
Driven Sprocket
311027003001
Retail
$45.49
Dealer
$33.70
In Stock
#7
Rear wheel spacer
307042001001
Retail
$12.96
Dealer
$9.60
In Stock
#8
Bolt
403030001001
Retail
$3.24
Dealer
$2.40
In Stock
#9
Nut
404005009001
Retail
$3.24
Dealer
$2.40
02 / PartsFRONT WHEEL ASSY

9 OEM parts · Retail + Dealer pricing

FRONT WHEEL ASSY Diagram
In Stock
#1
Front wheel spacer
307041001001
Retail
$8.10
Dealer
$6.00
In Stock
#2
Brake Disc+Bolt
309007010001
Retail
$55.36
Dealer
$43.60
In Stock
#3
Front Wheel
307038003001
Retail
$250.78
Dealer
$185.76
In Stock
#4
Front wheel anti-slip block
307010001001
Retail
$41.16
Dealer
$31.60
In Stock
#5
Tire & Inner Tube (Include Tape)
307007282001
Retail
$126.36
Dealer
$93.60
03 / PartsLINKAGE

16 OEM parts · Retail + Dealer pricing

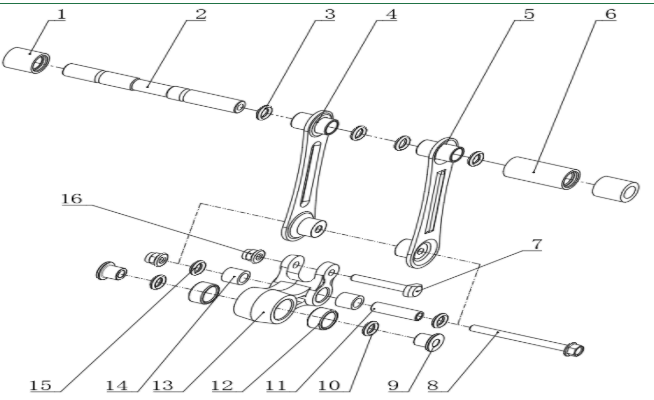

LINKAGE Diagram
In Stock
#1
Outer Nylon sleeve
305056001001
Retail
$9.72
Dealer
$7.20
In Stock
#2
Spacer
603027001001
Retail
$24.30
Dealer
$18.00
In Stock
#3
O-seal ring
319075004001
Retail
$6.48
Dealer
$4.80
In Stock
#4
Linkage L
305052002002
Retail
$8.10
Dealer
$6.00
In Stock
#5
Linkage R
305057001002
Retail
$8.10
Dealer
$6.00
In Stock
#6
Middle Nylon sleeve
305055001001
Retail
$3.24
Dealer
$2.40
In Stock
#7
T bolt
401012001001
Retail
$6.48
Dealer
$4.80
In Stock
#8
Bolt
401010004001
Retail
$6.48
Dealer
$4.80
In Stock
#9
spacer
603029002002
Retail
$12.96
Dealer
$9.60
In Stock
#10
O seal
319075002001
Retail
$6.48
Dealer
$4.80
In Stock
#11
Middle spacer
603028001001
Retail
$12.96
Dealer
$9.60
In Stock
#12
Bearing
409009002001
Retail
$6.48
Dealer
$4.80
In Stock
#13
Linkage Assy
306008006001
Retail
$68.04
Dealer
$50.40
In Stock
#14
Bearing
409009001001
Retail
$6.48
Dealer
$4.80
In Stock
#15
O seal
319075003001
Retail
$6.48
Dealer
$4.80
In Stock
#16
Nut
404030001001
Retail
$6.48
Dealer
$4.80
04 / PartsSEAT

8 OEM parts · Retail + Dealer pricing

SEAT Diagram
In Stock
#1
Seat
313020005001
Retail
$72.90
Dealer
$54.00
In Stock
#2
Left middle plastic cover
304114002001
Retail
$24.30
Dealer
$18.00
In Stock
#3
Fix pin
602003052003
Retail
$12.96
Dealer
$9.60
In Stock
#4
Right middle plastic cover
304115002001
Retail
$24.30
Dealer
$18.00
In Stock
#5
Screw
403004036001
Retail
$3.24
Dealer
$2.40
In Stock
#6
Seat opening stick
303237001001
Retail
$9.72
Dealer
$7.20
In Stock
#7
Buttery bolt
401015002001
Retail
$3.24
Dealer
$2.40
In Stock
#8
Washer
405006063001
Retail
$1.00
Dealer
$0.80
05 / PartsBRAKE ASSY

7 OEM parts · Retail + Dealer pricing

BRAKE ASSY Diagram
In Stock
#1
Bolt
401017001001
Retail
$3.24
Dealer
$2.40
In Stock
#2
Rear brake bracket
308057001001
Retail
$38.88
Dealer
$28.80
In Stock
#3
Clip
318001002002
Retail
$3.24
Dealer
$2.40
In Stock
#4
Screw
403001009001
Retail
$3.24
Dealer
$2.40
In Stock
#5
Rear brake Assy
308059008001
Retail
$79.38
Dealer
$58.80
In Stock
#6
Front brake Assy
308058008001
Retail
$79.38
Dealer
$58.80
In Stock
#7
Brake pad
308060002001
Retail
$24.30
Dealer
$18.00
06 / PartsFRONT FORK

26 OEM parts · Retail + Dealer pricing

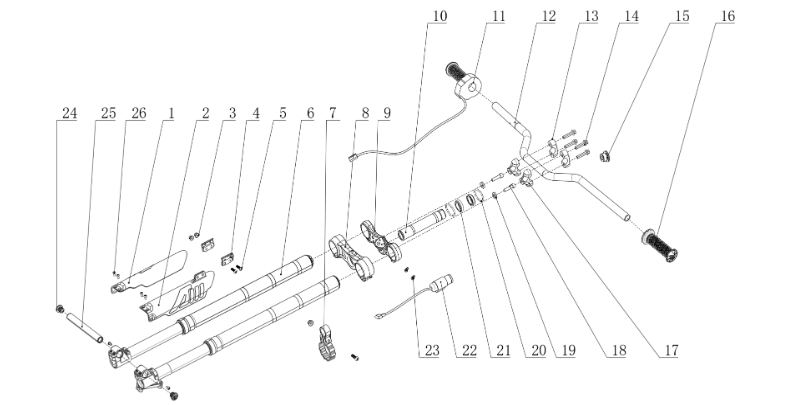

FRONT FORK Diagram
In Stock
#1
Right cover of front fork
304120002001
Retail
$16.20
Dealer
$12.00
In Stock
#2
Left cover of front fork
304119002003
Retail
$16.20
Dealer
$12.00
In Stock
#3
Nut
404030003001
Retail
$3.24
Dealer
$2.40
In Stock
#4
Pipe support
603001115002
Retail
$8.10
Dealer
$6.00
In Stock
#5
Screw
403004037001
Retail
$3.24
Dealer
$2.40
In Stock
#6
Front fork
305053003001
Retail
$322.38
Dealer
$238.80
In Stock
#7
Pipe support
318100001001
Retail
$8.10
Dealer
$6.00
In Stock
#8
Bottom triple clamp
310022136001
Retail
$77.76
Dealer
$57.60
In Stock
#9
Top triple clamp
310021034001
Retail
$68.04
Dealer
$50.40
In Stock
#10
Steering stem
608002002005
Retail
$9.72
Dealer
$7.20
In Stock
#11
Electronic throttle
315037059001
Retail
$56.70
Dealer
$42.00
In Stock
#12
Handle bar
310001149001
Retail
$61.56
Dealer
$45.60
In Stock
#13
Handlbe bar holder upper
310133007001
Retail
$19.44
Dealer
$14.40
In Stock
#14
Bolt
401006009001
Retail
$3.24
Dealer
$2.40
In Stock
#15
Plug
319078001001
Retail
$3.24
Dealer
$2.40
In Stock
#16
Left grip
310057147001
Retail
$24.30
Dealer
$18.00
In Stock
#17
Handlbe bar holder Bottom
310134007001
Retail
$19.44
Dealer
$14.40
In Stock
#18
Bolt
401006007001
Retail
$4.86
Dealer
$3.60
In Stock
#19
Spacer
310143002001
Retail
$12.96
Dealer
$9.60
In Stock
#20
Oring
319034008002
Retail
$4.86
Dealer
$3.60
In Stock
#21
Bearing
409011001001
Retail
$4.37
Dealer
$3.24
In Stock
#22
Main Lock
318102001001
Retail
$35.64
Dealer
$26.40
In Stock
#23
Screw
403001010001
Retail
$3.24
Dealer
$2.40
In Stock
#24
Front axle screw plug
319079002001
Retail
$3.24
Dealer
$2.40
In Stock
#25
Front axle
307027006001
Retail
$40.50
Dealer
$30.00
In Stock
#26
Screw
403004039001
Retail
$3.24
Dealer
$2.40
07 / PartsBATTERY PRESSING MECHANISM

6 OEM parts · Retail + Dealer pricing

BATTERY PRESSING MECHANISM Diagram
In Stock
#1
Lock torsional spring
319073001001
Retail
$4.86
Dealer
$3.60
In Stock
#2
Battery fixing torsion spring
319072001001
Retail
$4.86
Dealer
$3.60
In Stock
#3
Spring card (bearing clamp)
410001002001
Retail
$4.86
Dealer
$3.60
In Stock
#4
Torsional spring shaft
609092001001
Retail
$4.86
Dealer
$3.60
In Stock
#5
Screw
403028001001
Retail
$9.72
Dealer
$7.20
In Stock
#6
Torsional spring bushing
609091001001
Retail
$9.72
Dealer
$7.20
08 / PartsREAR SWING ARM ASSY

28 OEM parts · Retail + Dealer pricing

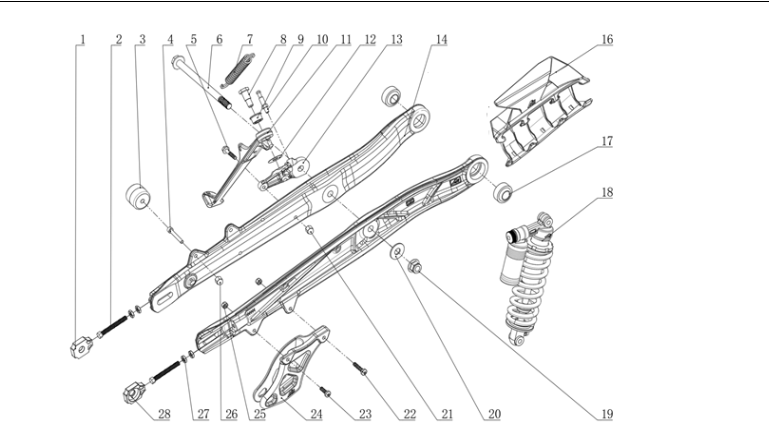

REAR SWING ARM ASSY Diagram
In Stock
#1
Left chain tensioner
311100001001
Retail
$3.24
Dealer
$2.40
In Stock
#2
Bolt
401003017001
Retail
$3.24
Dealer
$2.40
In Stock
#3
Side stand limit seat
303115004001
Retail
$3.24
Dealer
$2.40
In Stock
#4
Bolt
401006010001
Retail
$3.24
Dealer
$2.40
In Stock
#5
Bolt
401009005001
Retail
$3.24
Dealer
$2.40
In Stock
#6
Bolt
401009004001
Retail
$3.24
Dealer
$2.40
In Stock
#7
Double tension spring
303239001001
Retail
$3.24
Dealer
$2.40
In Stock
#8
Bolt
403029004001
Retail
$3.24
Dealer
$2.40
In Stock
#9
Side stand bushing
319001303001
Retail
$3.24
Dealer
$2.40
In Stock
#10
Tension spring retaining pin
608003019002
Retail
$3.24
Dealer
$2.40
In Stock
#11
Side stand
303012262001
Retail
$46.98
Dealer
$34.80
In Stock
#12
Washer
405006064001
Retail
$3.24
Dealer
$2.40
In Stock
#13
Side stand fixed seat
303238001001
Retail
$34.02
Dealer
$25.20
In Stock
#14
Swing arm Right
306037005001
Retail
$121.50
Dealer
$90.00
In Stock
#15
Swing arm Left
306037004001
Retail
$121.50
Dealer
$90.00
In Stock
#16
Rear fork cover
304034021001
Retail
$16.20
Dealer
$12.00
In Stock
#17
Bearing
409010001001
Retail
$8.10
Dealer
$6.00
In Stock
#18
Rear shock
305054001001
Retail
$169.13
Dealer
$125.28
In Stock
#19
Nut
404005009001
Retail
$3.24
Dealer
$2.40
In Stock
#20
Washer
319077002001
Retail
$3.24
Dealer
$2.40
In Stock
#8
Cover Nut
404028003001
Retail
$3.24
Dealer
$2.40
In Stock
#22
screw
403004041001
Retail
$3.24
Dealer
$2.40
In Stock
#23
screw
403004040001
Retail
$3.24
Dealer
$2.40
In Stock
#24
Chain guide
301062002001
Retail
$24.30
Dealer
$18.00
In Stock
#25
Nut
404027001001
Retail
$3.24
Dealer
$2.40
In Stock
#8
Cover Nut
404028003001
Retail
$3.24
Dealer
$2.40
In Stock
#27
Nut
404002008001
Retail
$3.24
Dealer
$2.40
In Stock
#28
Right chain tensioner
311101001001
Retail
$8.10
Dealer
$6.00
09 / PartsFRAME

40 OEM parts · Retail + Dealer pricing

FRAME Diagram
In Stock
#1
Sub-frame
606023001001
Retail
$95.58
Dealer
$70.80
In Stock
#2
Cover Nut
404028001001
Retail
$3.24
Dealer
$2.40
In Stock
#3
Washer
319077001001
Retail
$3.24
Dealer
$2.40
In Stock
#4
Screw
403029002001
Retail
$3.24
Dealer
$2.40
In Stock
#5
Screw
403029001001
Retail
$3.24
Dealer
$2.40
In Stock
#6
Bolt
401006004001
Retail
$3.24
Dealer
$2.40
In Stock
#7
Left battery holder
603001113001
Retail
$9.72
Dealer
$7.20
In Stock
#8
Left frame part
601001479001
Retail
$72.90
Dealer
$54.00
In Stock
#9
Cip
609094001002
Retail
$3.24
Dealer
$2.40
In Stock
#10
Rubber spacer
319076001001
Retail
$8.10
Dealer
$6.00
In Stock
#11
Frame reinforcement-left
601001507005
Retail
$16.20
Dealer
$12.00
In Stock
#12
Nut
404029001001
Retail
$8.10
Dealer
$6.00
In Stock
#13
Front side plastic fixing bracket
601001420004
Retail
$8.10
Dealer
$6.00
In Stock
#14
Nut
404025001001
Retail
$6.48
Dealer
$4.80
In Stock
#15
washer
405010002001
Retail
$6.48
Dealer
$4.80
In Stock
#16
Frame
303001457002
Retail
$160.38
Dealer
$118.80
In Stock
#17
Nut
404030003001
Retail
$3.24
Dealer
$2.40
In Stock
#18
Rubber washer
319016031001
Retail
$3.24
Dealer
$2.40
In Stock
#19
Rear brake tube clip
318001003001
Retail
$6.48
Dealer
$4.80
In Stock
#20
Frame reinforcement-right
601001507006
Retail
$8.10
Dealer
$6.00
In Stock
#21
Screw
403029003001
Retail
$3.24
Dealer
$2.40
In Stock
#22
Cover Nut
404026001001
Retail
$3.24
Dealer
$2.40
In Stock
#23
Right frame part
601001480001
Retail
$82.62
Dealer
$61.20
In Stock
#24
Screw
403029005001
Retail
$3.24
Dealer
$2.40
In Stock
#25
Right battery holder
603001114001
Retail
$9.72
Dealer
$7.20
In Stock
#26
Shock absorber fix holder
603001112001
Retail
$24.30
Dealer
$18.00
In Stock
#27
Bolt
401010001001
Retail
$3.24
Dealer
$2.40
In Stock
#28
Bolt
401010002001
Retail
$3.24
Dealer
$2.40
In Stock
#29
Bolt
401010003001
Retail
$3.24
Dealer
$2.40
In Stock
#30
Bolt
401010001001
Retail
$3.24
Dealer
$2.40
In Stock
#31
Bolt
401010002001
Retail
$3.24
Dealer
$2.40
In Stock
#32
Rear swing arm fix holder
601001478001
Retail
$43.74
Dealer
$32.40
In Stock
#33
Nut
404002008001
Retail
$3.24
Dealer
$2.40
In Stock
#34
Foot rest Right
606009010001
Retail
$19.44
Dealer
$14.40
In Stock
#35
Pin
407008005001
Retail
$3.24
Dealer
$2.40
In Stock
#36
Footrest bracket right
606010006001
Retail
$34.02
Dealer
$25.20
In Stock
#37
Nut
404005008001
Retail
$3.24
Dealer
$2.40
In Stock
#38
Motor guard
609088002005
Retail
$111.78
Dealer
$82.80
In Stock
#39
Footrest bracket left
606010005001
Retail
$34.02
Dealer
$25.20
In Stock
#40
Foot rest left
606009011001
Retail
$19.44
Dealer
$14.40
10 / PartsPLASTIC BODY

20 OEM parts · Retail + Dealer pricing

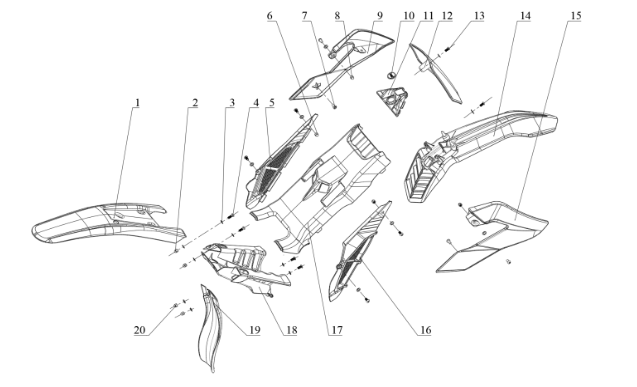

PLASTIC BODY Diagram
In Stock
#1
Rear fender
304009020001
Retail
$24.30
Dealer
$18.00
In Stock
#2
Screw
404028002001
Retail
$3.24
Dealer
$2.40
In Stock
#3
Washer
405006063001
Retail
$3.24
Dealer
$2.40
In Stock
#4
Screw
403004038001
Retail
$3.24
Dealer
$2.40
In Stock
#5
Left trim panel of the controller
304112001001
Retail
$19.44
Dealer
$14.40
In Stock
#6
Cover Nut
404028002001
Retail
$3.24
Dealer
$2.40
In Stock
#7
Screw
403005122001
Retail
$3.24
Dealer
$2.40
In Stock
#8
Cover Nut
404028003001
Retail
$3.24
Dealer
$2.40
In Stock
#9
Front & left plastic cover
304002023001
Retail
$16.20
Dealer
$12.00
In Stock
#10
Cover of Switch button fix bracket
318103002001
Retail
$8.10
Dealer
$6.00
In Stock
#11
Switch button fix bracket
304118001001
Retail
$3.24
Dealer
$2.40
In Stock
#12
Number plate
304013028001
Retail
$19.44
Dealer
$14.40
In Stock
#13
Screw
403004036001
Retail
$16.20
Dealer
$12.00
In Stock
#14
Front fender
304015024001
Retail
$24.30
Dealer
$18.00
In Stock
#15
Front & left plastic cover
301056004001
Retail
$16.20
Dealer
$12.00
In Stock
#16
Right trim panel of the controller
304113001001
Retail
$16.20
Dealer
$12.00
In Stock
#17
Top cover part A
304116001001
Retail
$16.20
Dealer
$12.00
In Stock
#18
Storage box
304117001001
Retail
$24.30
Dealer
$18.00
In Stock
#19
Rear fender protection
304018015001
Retail
$16.20
Dealer
$12.00
In Stock
#20
Cover Nut
404028002001
Retail
$3.24
Dealer
$2.40
11 / PartsELECTRICAL SYSTEM

21 OEM parts · Retail + Dealer pricing

ELECTRICAL SYSTEM Diagram
In Stock
#1
Switch Button
315090001001
Retail
$46.98
Dealer
$34.80
In Stock
#2
Bolt
401008001001
Retail
$3.24
Dealer
$2.40
In Stock
#3
Harness
315134001001
Retail
$111.78
Dealer
$82.80
In Stock
#4
clip
609099001001
Retail
$3.24
Dealer
$2.40
In Stock
#5
Side stand switch
315203001001
Retail
$9.72
Dealer
$7.20
In Stock
#6
Nut
404032001001
Retail
$8.10
Dealer
$6.00
In Stock
#7
Chain
311011278001
Retail
$79.38
Dealer
$58.80
In Stock
#8
Motor
315031042001
Retail
$481.14
Dealer
$356.40
In Stock
#9
Motor spacer
609093001001
Retail
$4.86
Dealer
$3.60
In Stock
#10
DC output line
315137001001
Retail
$56.70
Dealer
$42.00
In Stock
#11
Controller
315021382001
Retail
$393.66
Dealer
$291.60
In Stock
#12
Battery
315006027001
Retail
$1,618.38
Dealer
$1,198.80
In Stock
#13
belt
318027005001
Retail
$4.86
Dealer
$3.60
In Stock
#14
Display
317001702001
Retail
$63.18
Dealer
$46.80
In Stock
#15
Display bracket
601019007008
Retail
$4.86
Dealer
$3.60
In Stock
#16
belt
318027004001
Retail
$9.72
Dealer
$7.20
In Stock
#1
Front Sprocket 13T
311004004001
Retail
$21.06
Dealer
$15.60
In Stock
#2
Front Sprocket 11T
311004002002
Retail
$21.06
Dealer
$15.60
In Stock
#3
decal kit
320051001261
Retail
$46.98
Dealer
$34.80
In Stock
#4
brake lever
310005012001
Retail
$19.44
Dealer
$14.40
In Stock
#5
CHARGER
315014051003
Retail
$304.56
Dealer
$225.60
